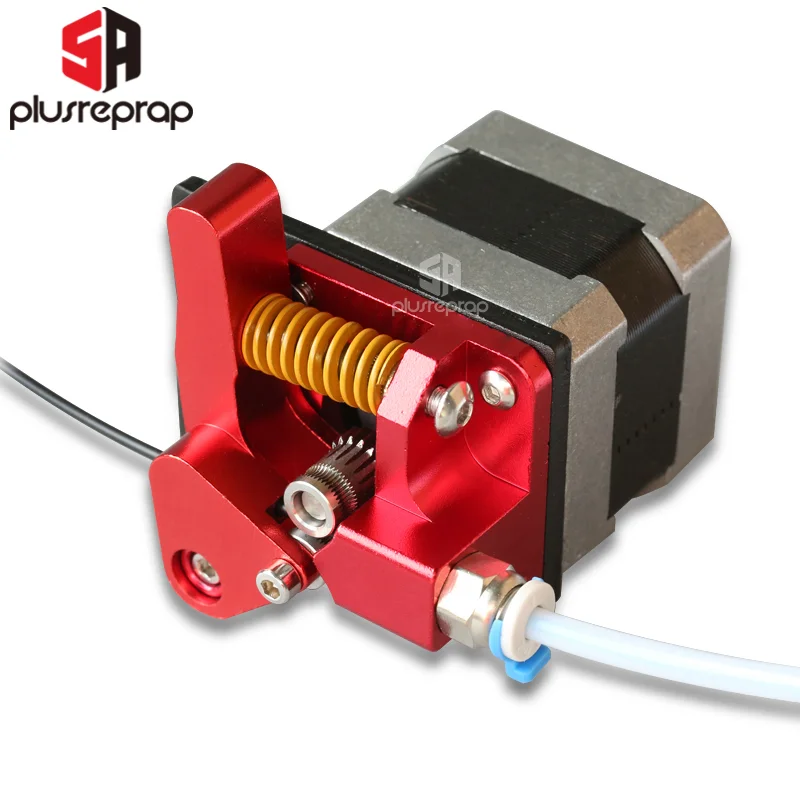

1. This is an upgraded version of CR10 extruder.
A newly added extrusion wheel makes the filament feed more stable. The design of the double-concave gear also reduces the embossing of the consumables by the extrusion wheel.
The mould steel spring is very rigid, strong in pressure and very durable.
2. There are stainless steel driver gear extruder set and hardened driver gear extruder set for you to choose.
The hardened gears are treated with hardened steel and then treated by nickel plating. Greatly improved the durability and reliability of gears. The extruder controls the filament very well.
3.Our gears are finely made and more durable to improve your work efficiency.

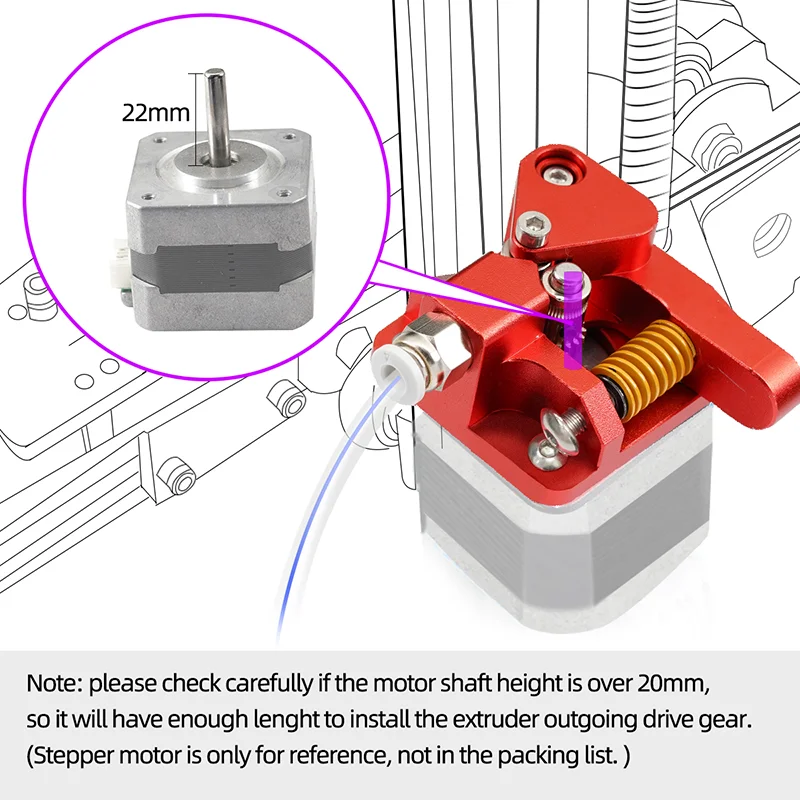

This all metal dual drive extruder is compatible with Ender 3 V2,Ender 3 Pro,Ender 3,Ender 3 Neo,Ender 3 V2 Neo,Ender 3 Max Neo,Ender 5 Pro,CR10 S series 3D printer.ONLY suit for 3d printers with motor shaft over 20mm,please measure the shaft length before placing the order.
After installed,please calibrate the E-steps from 100 to 139,then abjust the E-steps setting by up or down unit value depend your usage result.
Why choose our products?
1. Upgrade 1
2. Upgrade 2

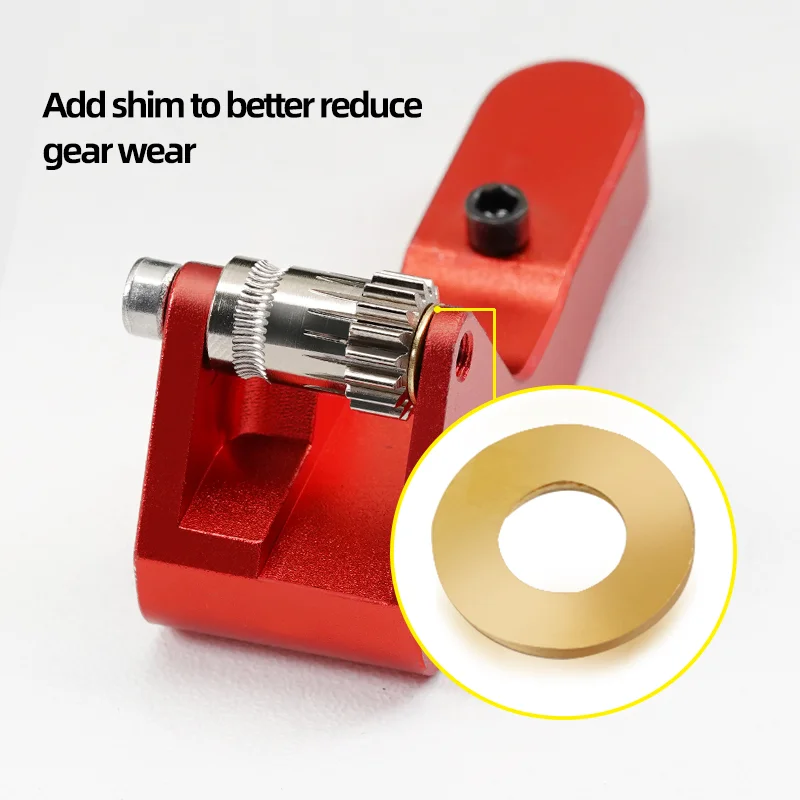

Ours—We have unique designed shaft screw, which have strong and glossy appearance, being more smooth and durable.

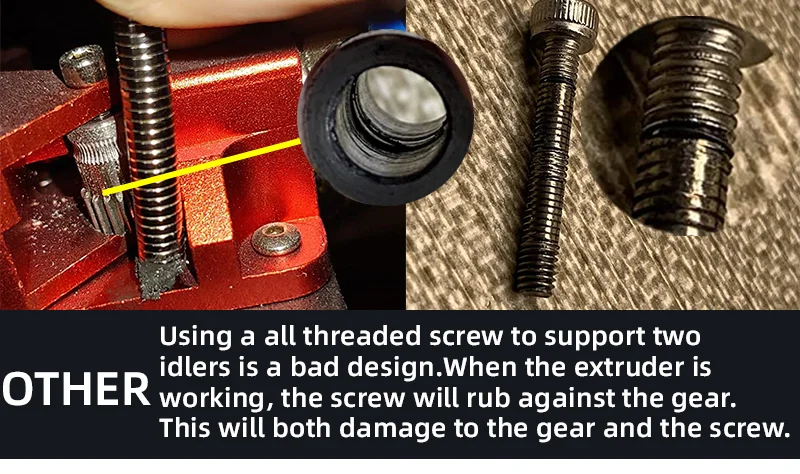

Using a all threaded screw to support two idlers is a bad design .When the extruder is working, the screw will rub against the gear. This will damage both of the screw and bearings .
3. Upgrade 3

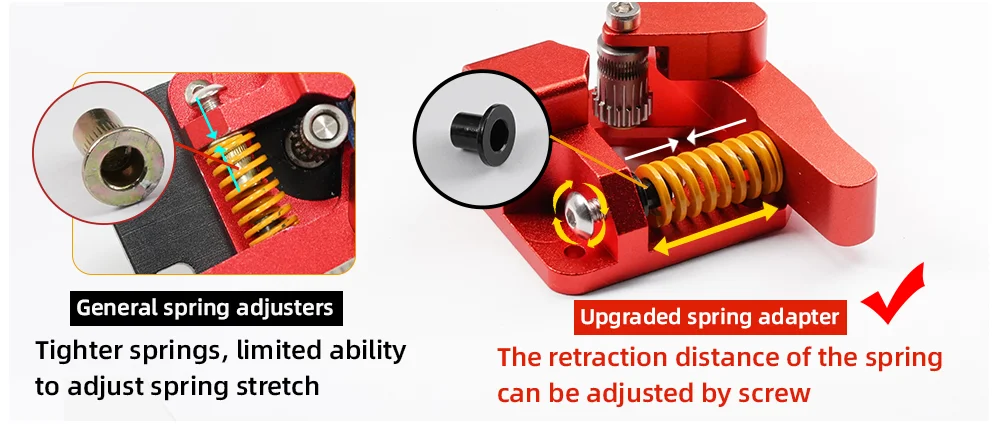

Advantage of the upgraded spring adapter
The extrusion spring tension could be adjusted by tighten the screw,which greatly improves the printing accuracy and feeding issue.
4. Extra Extruder Springs for your spare usage 🙂
5. Quality Stainless Steel and hardened drive gear for you to choose
Issues this fixes:
Miss-aligned Extrusion feed gear
Excessive part damage from wearMissing layer extrusion
Over and under extrusion
Bowden tube failure
Filament damage and grinding
Jammed nozles
Retraction errors
Metal fragments enter the hot-end
Squeeking and rattling noise
Low-quality printsBroken filament
Hogging of filament
Please notice!
Kindly Reminder:
After installed,please calibrate the E-steps from 100 to 139,then abjust the E-steps setting by up or down unit value depend your usage result.
For 3d printers with filament detector,as the height of our dual gear extruder may be different from the original one, please print the model to rise up the filament detector to make them at the same height.
For DDE or BNNG Extruder users,please swap the motor wire sequence to make it turn forward instead of reverse.
Application

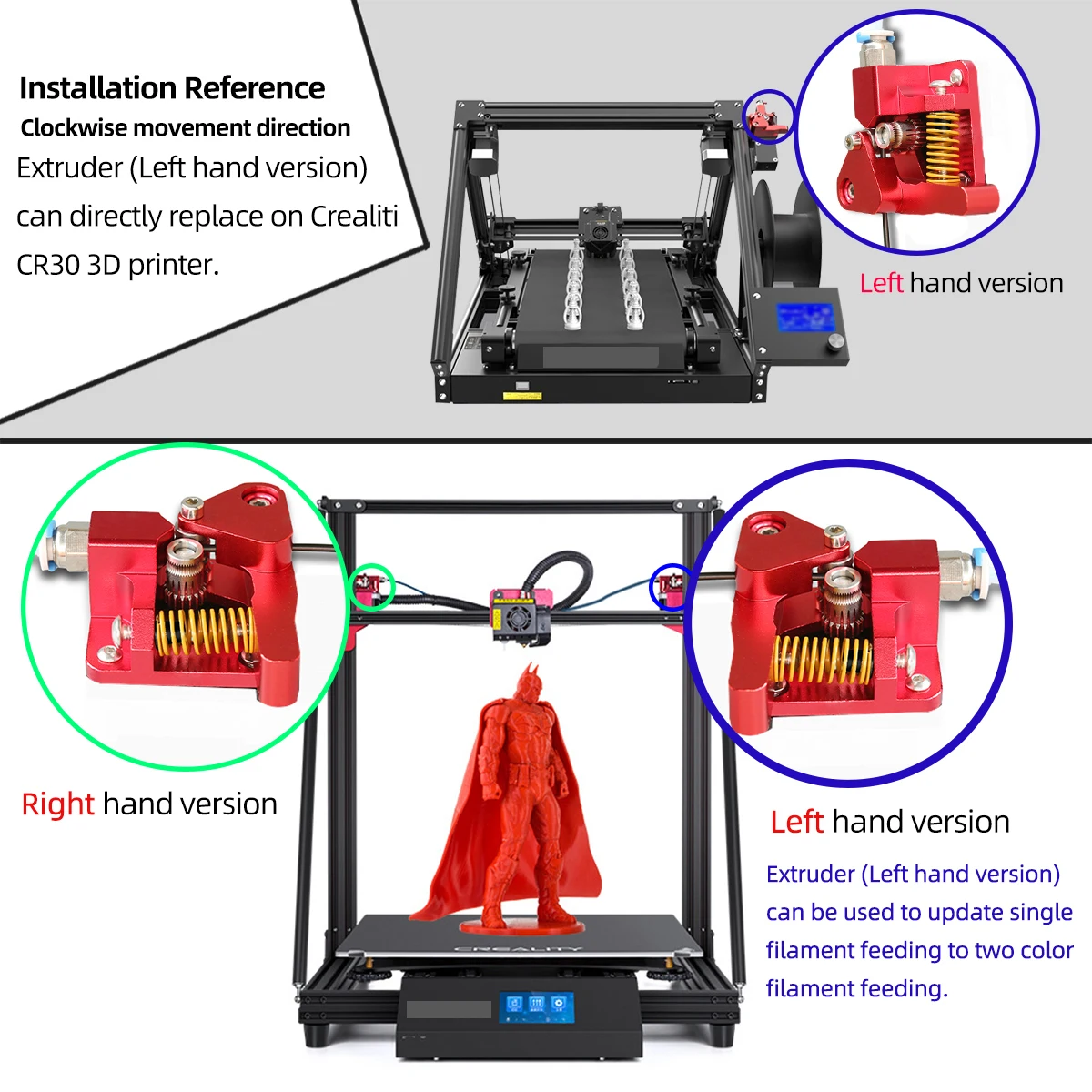

Left-handed and Right-handed extruder set for you to choose.
For most Crealiti Ender/CR Series 3D Printers please choose the right-handed extruder.
This all metal dual drive extruder (Right-handed ) is compatible with Ender 3 V2,Ender 3 Pro,Ender 3,Ender 3 Neo,Ender 3 V2 Neo,Ender 3 Max Neo,Ender 5 Pro,CR10 S series 3D printer.ONLY suit for 3d printers with motor shaft over 20mm,please measure the shaft length before placing the order.(Special for new Ender 3 Pro 3D printer,Creality has shortened the shaft on their stepper motor for the extruder in some batch, therefore ,please check the motor shaft before purchase. )
This all metal dual drive extruder (Left-handed ) is compatible with CR30 3d printers.

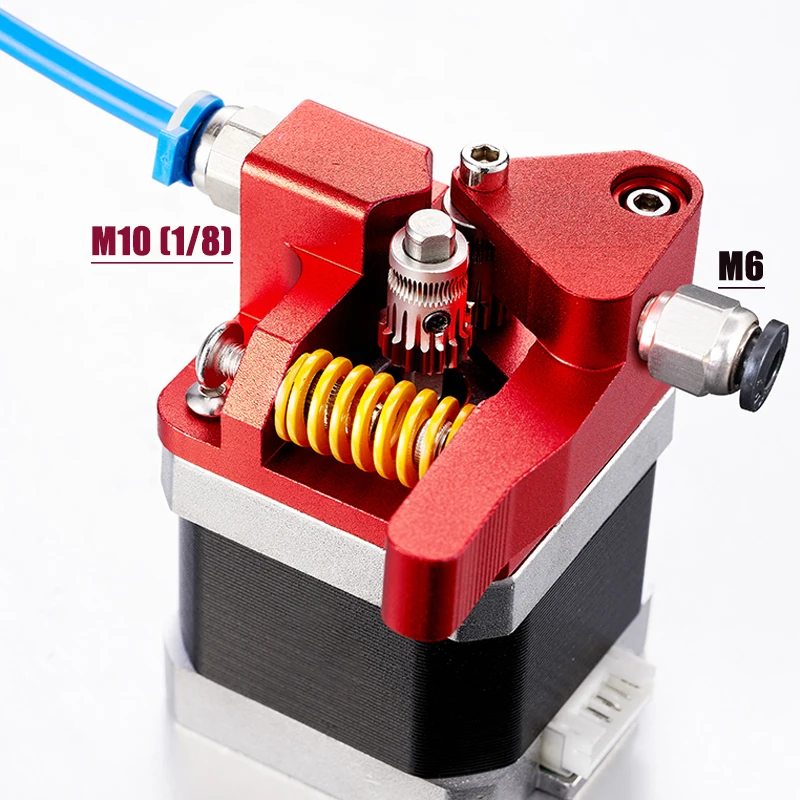

CR10 PRO Extruder(Right)– M6 and M10 Tube Connector
Main Material Instruction:
Material for extruder body: Aluminum Alloy
Material for drive gear in extruder kit: Stainless Steel or hardened Steel
Material for the hardened gear kit: 45#Carbon Steel nickel plated
Apply to filament: 1.75mm
There are two versions of stainless steel driver gears in the extruder kit: ordinary gear OR high quality gear.
There is one version of Hardened Steel driver gears for single purchase.
Please choose it in order.

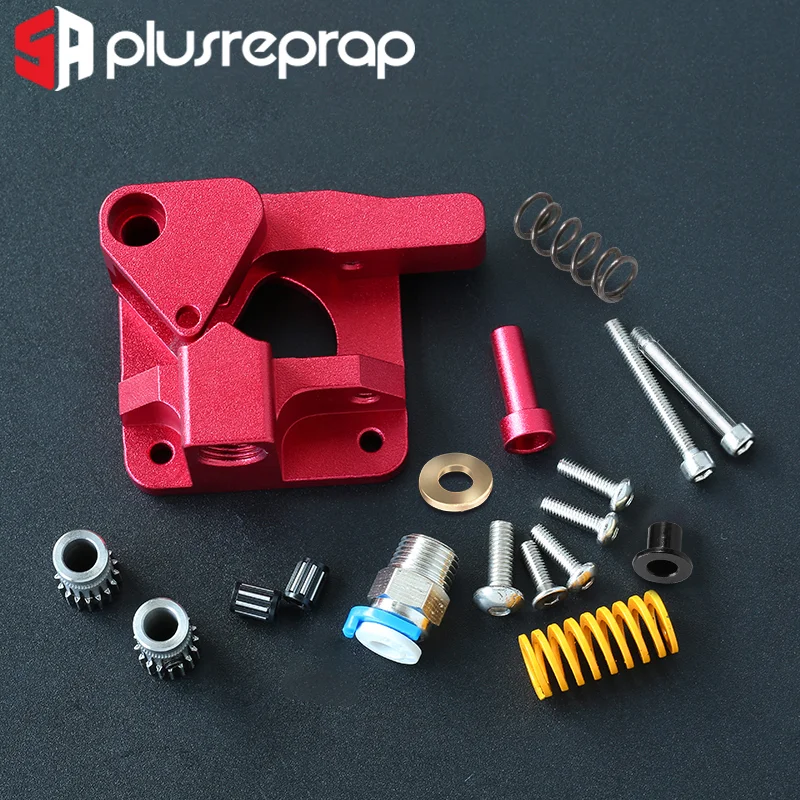

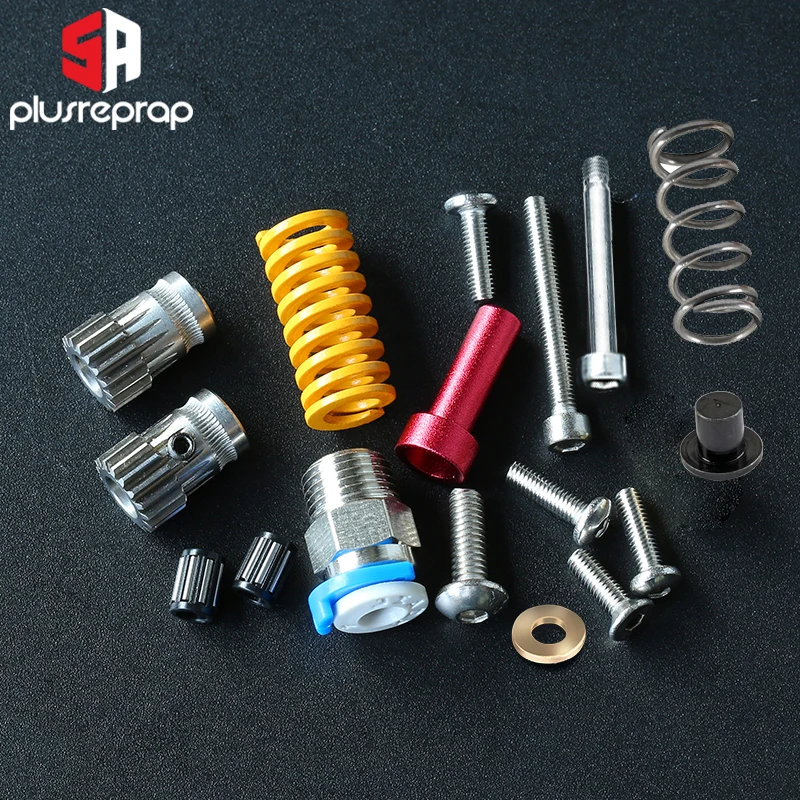

The set with 4 pcs quality stainless steel gears include 2pcs of m3 hole and 2pcs without hole drive gears.
The set with 2 pcs quality hardened steel gears include 1pc of m3 hole and 1pc without hole drive gears.
The set “Right -ordinary gear” Right Hand Version with the ordinary stainless steel gears(include 1pcs with the m3 hole and 1pcs without hole drive gears).
The set “Right -Stainless Gear” Right Hand Version with the quality stainless steel gears(include 1pcs with the m3 hole and 1pcs without hole drive gear in kit).
The set “Right-4 Stainless Gear” Right Hand Version with the quality stainless steel gears(include 2pcs with the m3 hole and 2pcs without hole drive gears in kit).
The set “Left – Stainless Gear”Left Hand Version with the quality stainless steel gears(include 1pcs with the m3 hole and 1pcs without hole drive gears in kit).
The set “Olny 4 Quality geat”type Stinless Gear Version with the quality stainless steel gears(include 2pcs with the m3 hole and 2pcs without hole drive gears in kit)
The set “Olny 2 Haredened gear”type Haredened Gear Version with the quality Haredend gear (include 1pcs with the m3 hole and 1pcs without hole drive gears in kit)
The set “Right dual connector” type Right Hand Dual Tube Connector Version with the quality hardened gears(include 1pcs with the m3 hole and 1pcs without hole drive gears in kit)
| Weight | 0,09 kg |
|---|
